OB-1650 StandardAir Mattress – Alternating Pressure Ulcer Prevention Mattress with Low Air Loss Air
Original price was: $3,950.00.$1,998.00Current price is: $1,998.00.
-
- Bed Frame, Bedpan, Shampoo Basin are not included!!!
- Patented inflatable Air-Filled guardrail (Manual Operation) and sinking mattress feature combined for enhanced safety and accessibility
- Patented Easy Go opening allows for accessible bedpan and shampoo procedures （Manual Opreation）
- Multiple Rotation Angel 15°,25°
- Comfort-Focused 15 LPM Low Air Loss therapy minimizes heat and moisture pressure on the patient’s skin

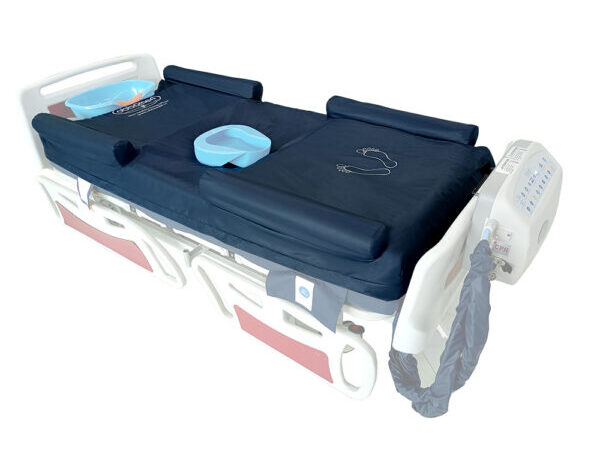

ObboMed OB-1650 StandardAir Alternating Pressure Ulcer Prevention Mattress with Low Air Loss Air & Lateral Rotation
Alternating • Low Air Loss • Lateral Rotation • Patented Toileting & Shampoo System • Patented Inflatable Guardrail
When patients stay in bed for long periods, constant pressure, trapped heat, and moisture can cause skin damage and make care more difficult. Regular mattresses cannot effectively relieve these issues.
The ObboMed OB-1650 StandardAir is a medical-grade air mattress designed for pressure ulcer prevention, wound care, respiratory support, and total bedside comfort. Built for hospitals, long-term care, and at-home caregiving, this mattress combines alternating pressure, comfort-focused low air loss, lateral rotation, patented toileting/shampoo system, and a patented Inflatable Guardrail —all in one advanced unit.
Triple Pressure Relief Therapy: Alternating Pressure + Low Air Loss + Lateral Rotation
1. Advanced Alternating Pressure Therapy
The alternating pressure system gently shifts air within the mattress in timed cycles to relieve constant pressure on the skin. This continuous redistribution helps prevent and manage Stage 1–4 pressure ulcers, improves blood circulation, and supports faster tissue repair for patients who spend extended hours in bed.
2. Comfort-Focused Low Air Loss With High-Volume Airflow
A powerful ventilation system delivers 15 LPM low air loss to actively remove heat and moisture beneath the body. This maintains a dry, cool microclimate—essential for preventing skin maceration, irritation, and infection. By controlling temperature and humidity at the skin level, patient care becomes safer, easier, and more effective.
3. Multiple Rotation Angles for Respiratory and Repositioning Support
The mattress offers adjustable rotation settings at 15°, 25°
15° rotation provides gentle, continuous self-lateral movement ideal for regular pressure relief.
25° rotations support deeper repositioning, promote lung expansion, help mobilize phlegm, and significantly reduce the risk of pneumonia—especially important for immobilized or ventilated patients.
Patented Innovation feature (only in Obbomed)
Patented “Easy Go” Bedpan & Shampoo function (Manual Operation) Eliminate Dangerous Transfers
Bedridden patients requiring bedpan use or hair washing typically need risky transfers that can worsen existing pressure ulcers.
The patented “Easy Go” bedpan function (Manual) eliminates this risk—push the Quick Release Valve to deflate four air cells beneath the buttocks in just 20 seconds, creating a recessed opening to position a bedpan. After toileting is complete, reinserting the valve quickly re-inflates the mattress and restores the support surface.
Similarly, the “Easy Go” shampoo function (Manual) uses a Quick Release Valve to deflate the head section in just 20 seconds, creating space to accommodate a shampoo basin. Reinserting the valve quickly re-inflates the mattress and restores the surface.
Both functions allow solo caregivers to provide dignified personal care without moving patients from the medical mattress—protecting fragile skin and reducing caregiver strain. (Bedpan, Shampoo Basin Not Included)
The videos shown may display the automatic (one-touch) “Easy Go” system found on higher models: OB-2650/OB-3650
Patented Inflatable Air-Filled Guardrails (Manual)
The 4-inch inflatable guardrails provide soft but sturdy support to help prevent falls or bumps. They also reduce the risk of slipping or getting stuck between the mattress and the rail.
Inflatable Air-Filled Guardrail: Press the quick-release valve to deflate the guardrail within seconds. Reinsert the valve to inflate it again just as quickly.
Comfort-Focused True Low Air Loss (LAL) Therapy
Positioned beneath the cover layer, the dynamic LAL system delivers airflow at 15 liters per minute, this powerful ventilation system effectively removes moisture and regulates moisture and heat around the patient’s skin, helping to maintain a dry and comfortable microclimate. The result is enhanced comfort and improved skin protection—especially vital for individuals of all ages dealing with stage 1 to stage 4 pressure ulcers.
Multiple Rotation Angles (15°/25°):
Designed to accommodate various patient needs, the mattress offers multiple rotation angles of 15°, 25° Right / 25°Left / 25°Auto Rotation. This feature increases patient activity, assists in lung function by facilitating phlegm expulsion, reduces the risk of pulmonary infections, and enhances overall physical therapy outcomes.
15° Self-Lateral Rotation:
Specialized air cells gently inflate and deflate to create a 15° wave-like motion that redistributes pressure, improves circulation, enhances sleep quality, and helps prevent bedsores.
Sinking Feature with Centralization:
The mattress lowers up to 4 inches, working with the 4-inch inflatable guardrails to form an 8-inch deep soft barrier. This keeps the patient centered and safe during rotation.
Fowler & Sitting-up Function
When the head of the bed is raised, the Fowler function boosts support in the seat and torso areas to prevent bottoming out. This helps maintain proper posture and reduces the risk of pressure injuries while seated.

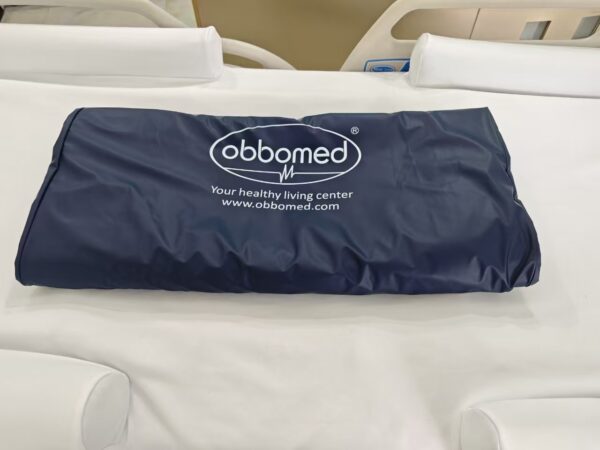

Features of ObboMed’s Top Cover:
German-made 4-way stretch polyurethane (PU) leather top cover with quilted underside to minimize friction and shearing of skin. Machine washable.
Antimicrobial properties, biocompatible, anti-allergic and anti-irritating. Free of latex, lead and mercury.
Permeable material allows perspiration to vacate through the top cover to remove moisture and body heat by Low Air Loss.
Air cells are composed of thermoplastic polyurethane (TPU) and nylon. Through ultrasonic high-frequency sealing, the air cells are heat-melt airtight.
Liquid-proof and fireproof (complies with US standards: 16 CFR 1632, 16 CFR 1633, TB129)
OB-1650 Mattress dimension and weight specifications:
|
Mattress Dimensions |
80 in. Long by 36 in. Wide |
|
|
Mattress Height |
From 7 in. to 11 in. |
|
|
Weight Capacity |
450 Pounds |
|
|
Mattress Weight |
22 Pounds |
|
|
Control Unit Weight |
15.5 Pounds |
|
|
Functions |
|
|
|
Rotation Angles |
15, 25, and 40 Degrees |
|
|
Alternating Cycle Time |
10, 20, 30, and 40 Minutes |
|
|
Rotation Circle |
10, 20, 30, 40, 60, 90, and 120 Minutes |
|
|
Pump |
30 LPM |
|
|
Low Air Loss |
15 LPM |
|
|
Warranty |
|
|
|
Unit Package Dimensions |
19.3 in. Long by 16.9 in. Wide by 26.4 in. High |
|
|
Unit Package Weight |
41.7 Pounds |

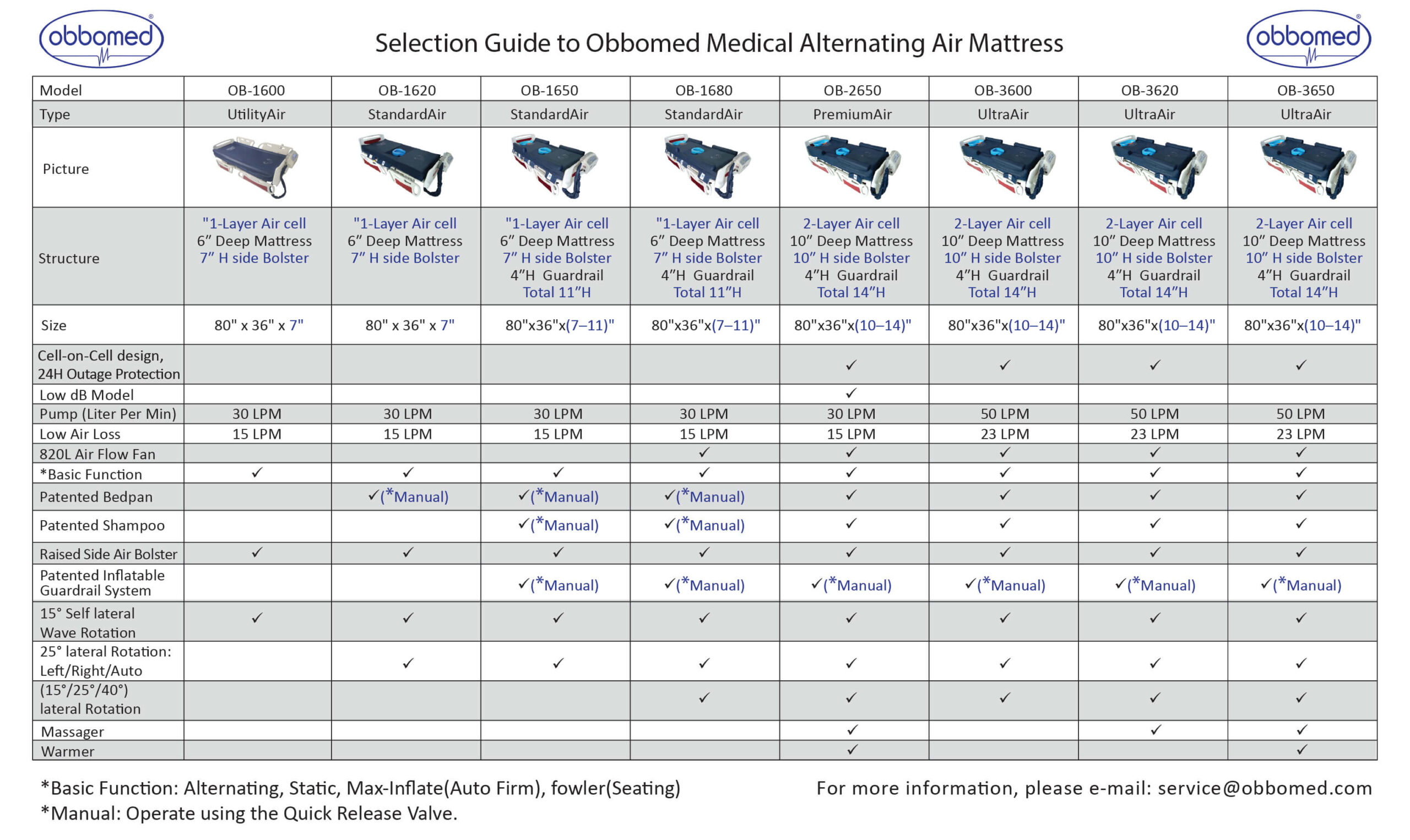

Explore Other Models:
1-Layer Structure: UtilityAir & StandardAir Models
2-Layer Structure: PremiumAir & UltraAir Models
Installation Video
Operation Guide Video
